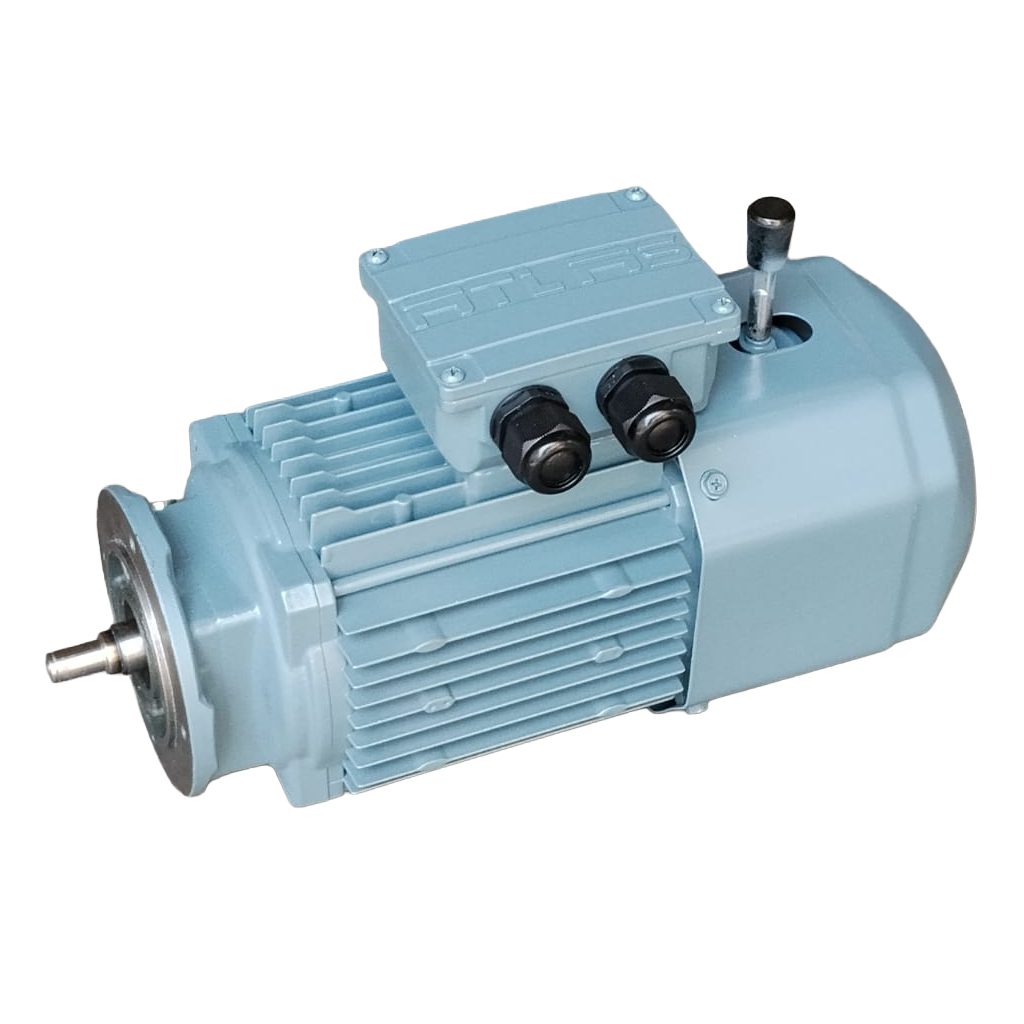

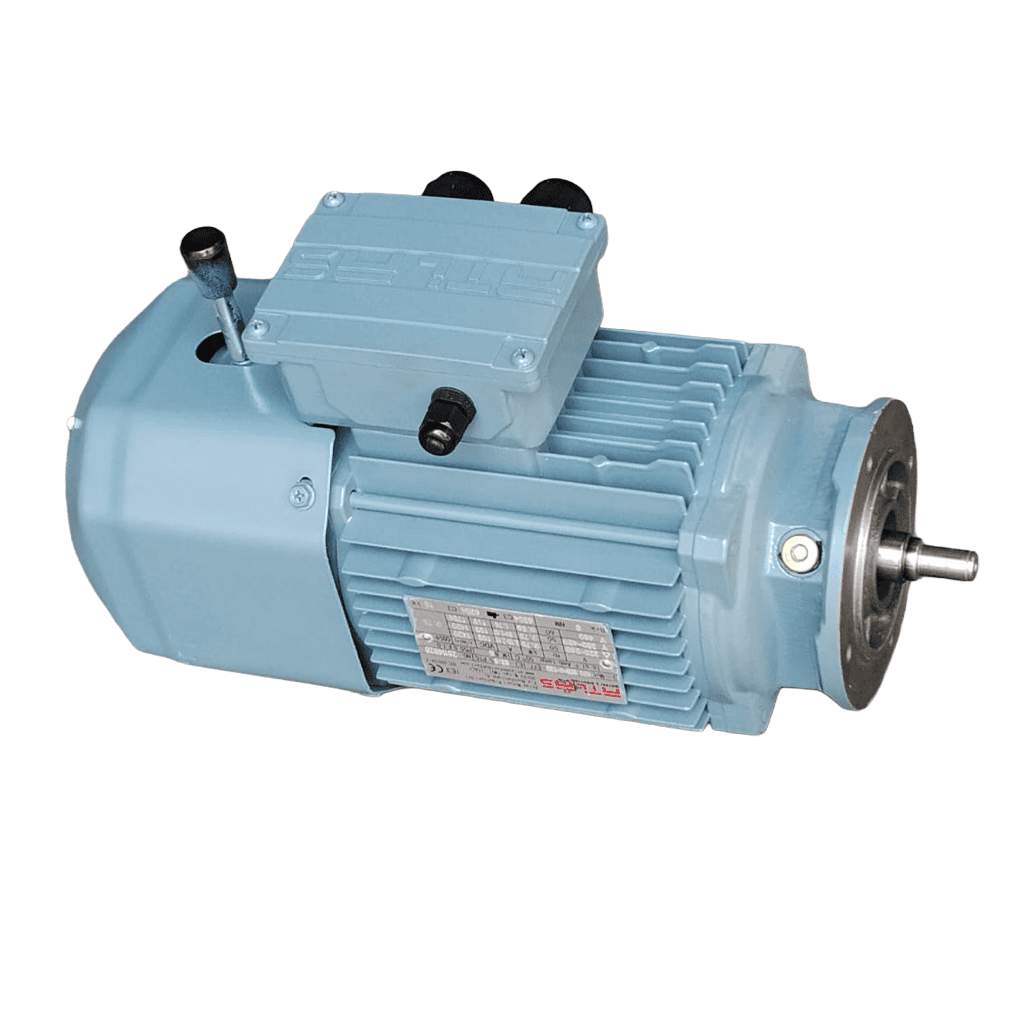

- Motor Type: Three Phase AC Brake Induction Motor
- Brand: Atlas
- Frame Material: Cast Iron/ Aluminum
- Frame Sizes: IEC 63-200
- Mounting: IM B3,B5,B14,B34,B35
- Poles:2/4/6/8
- Duty: S1(Continuous)
Double-tap to zoom
Key details :
- VOLTAGE 220V/380V/415V
- FREQUENCY 50/60 Hz
- OUTPUT 0.18-22kW
- SPEED 750/1000/1500/3000 RPM
- PROTECTION IP55(Motor)/IP44(Brake)
- COOLING TEFC (IC411)
- INSULATION Class F
- EFFICIENCY CLASS IE2/IE3
Buy three phase atlas AC brake motor from Pokhara Motors. Reliable braking system, durable build and perfect for heavy-duty industrial operations.
Cranes, hoists, conveyors, machine tools, packaging machines, door operators, elevators, material handling equipment
