- Motor Type: Three Phase DC Brake Induction Motor
- Brand: Atlas
- Frame Material: Cast Iron
- Frame Sizes: IEC 63-200
- Mounting: IM B3,B5,B14,B34,B35
- Poles: 2/4/6/8
- Duty: S1(Continuous)

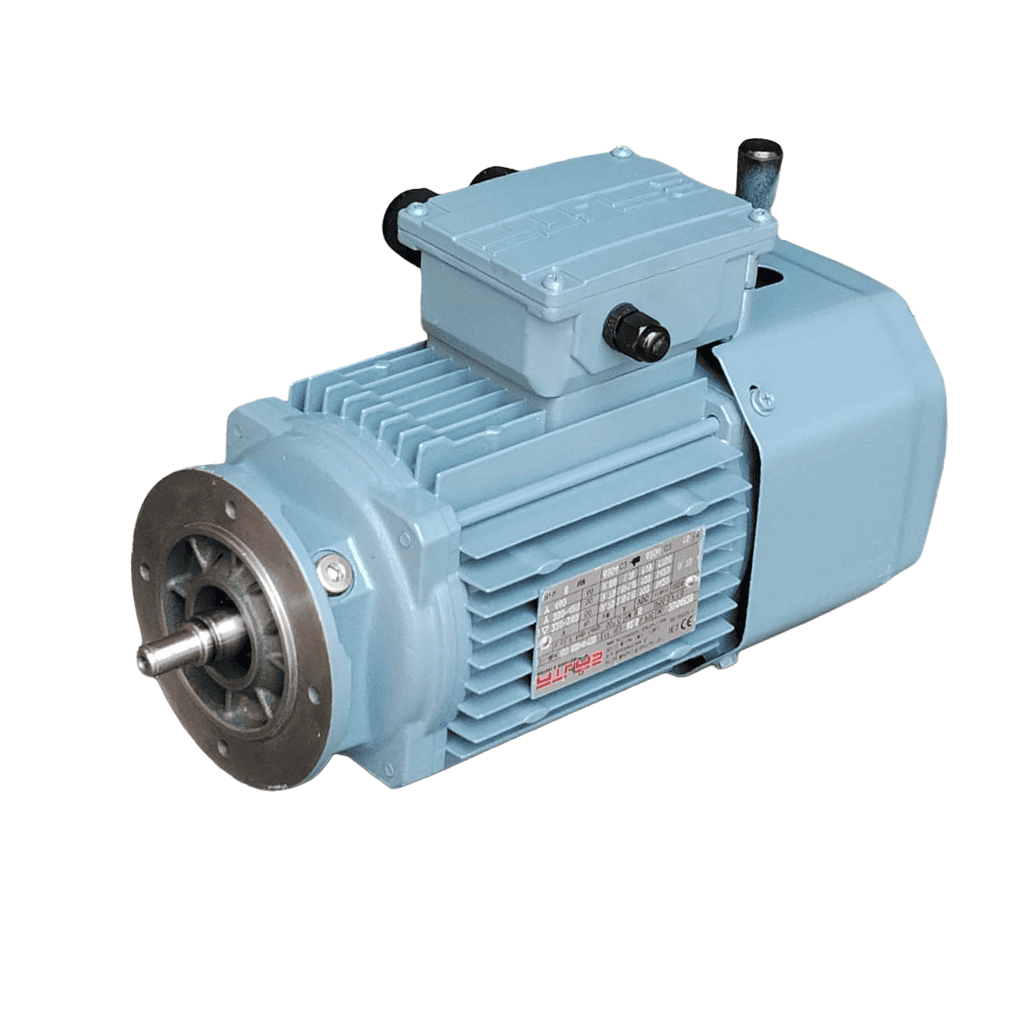

Atlas DC Brake
Double-tap to zoom
Key details :
- VOLTAGE 220V/380V/415V
- FREQUENCY 50/60 Hz
- OUTPUT 0.18-22kW
- SPEED 750/1000/1500/3000RPM
- PROTECTION IP55(Motor)/IP54(Brake)
- COOLING TEFC(IC411)
- INSULATION Class F
- EFFICIENCY CLASS IE2/IE3
Get Three Phase Atlas DC Brake Motor from Pokhara Motors. Strong braking power, long-lasting durability and suitable for demanding applications — engineered to deliver instant, precise stopping force for the most challenging industrial environments. As a trusted Atlas Three Phase DC Brake Motor supplier in UAE, Saudi Arabia, Qatar and Oman, Pokhara Motors delivers genuine Atlas DC brake motors engineered for powerful braking, maximum durability, and consistent performance across all heavy-duty industrial operations. Built for cranes, hoists, conveyors, and lifting equipment where instant and controlled stopping is essential. Your dependable Electric Motor supplier in UAE, Saudi Arabia, Qatar and Oman — strong braking power, built to last.
Cranes & overhead hoists,CNC machinery,Elevators & lifts,Precision machine tools, Robotics & automation,Printing machines, Metal cutting machines
