DAVE-Apex

Get DAVE‑Apex JK series threaded gear pump with Motor Input flanged from Pokhara Motors. Reliable, compact, medium‑pressure, easy motor coupling for industrial fluid transfer

DAVE-Apex

download

Double-tap to zoom

Key details :

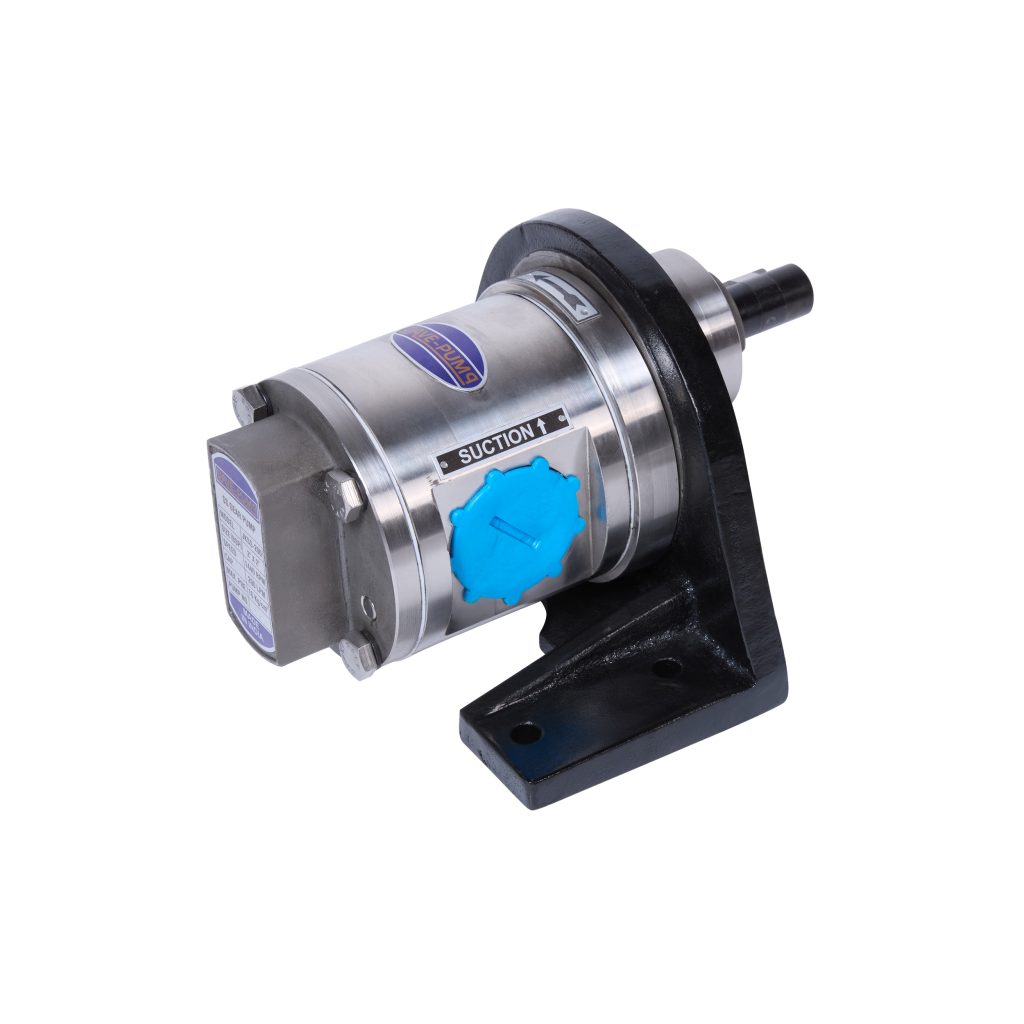

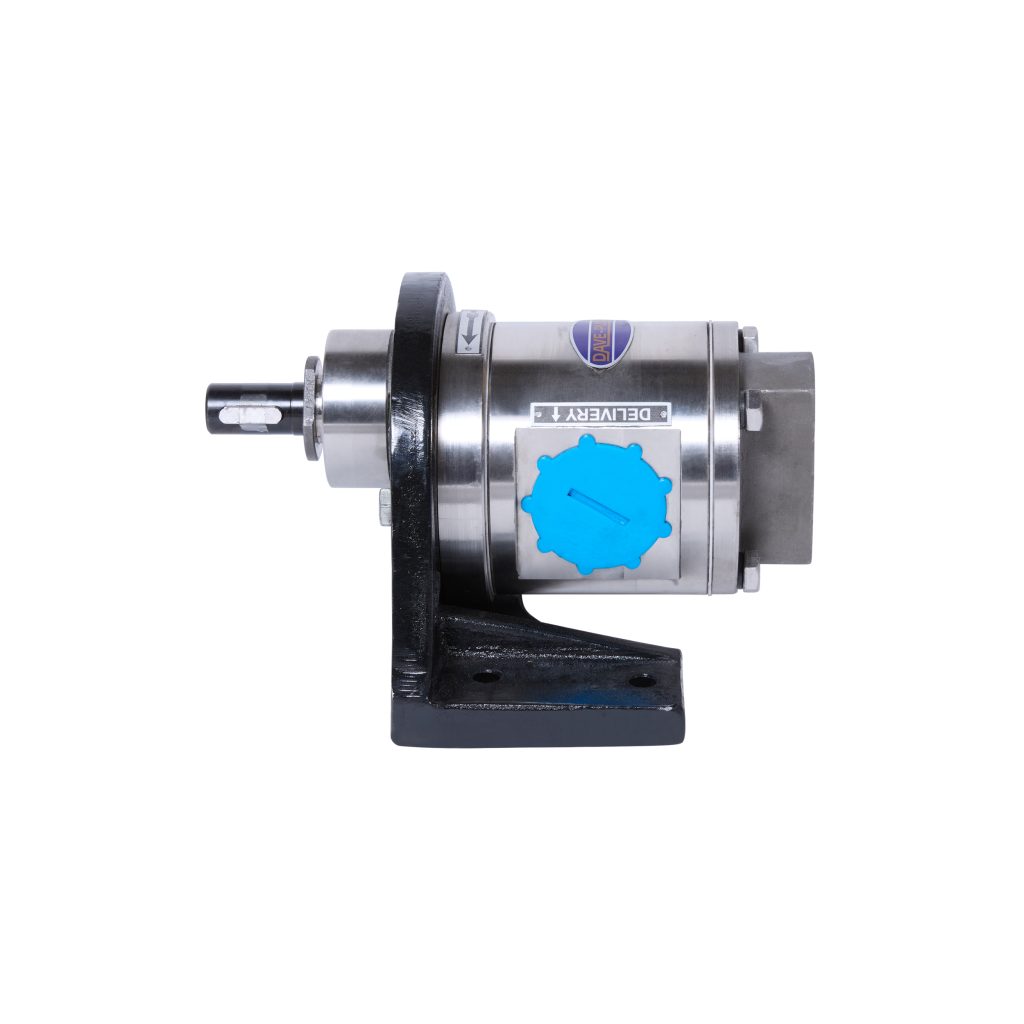

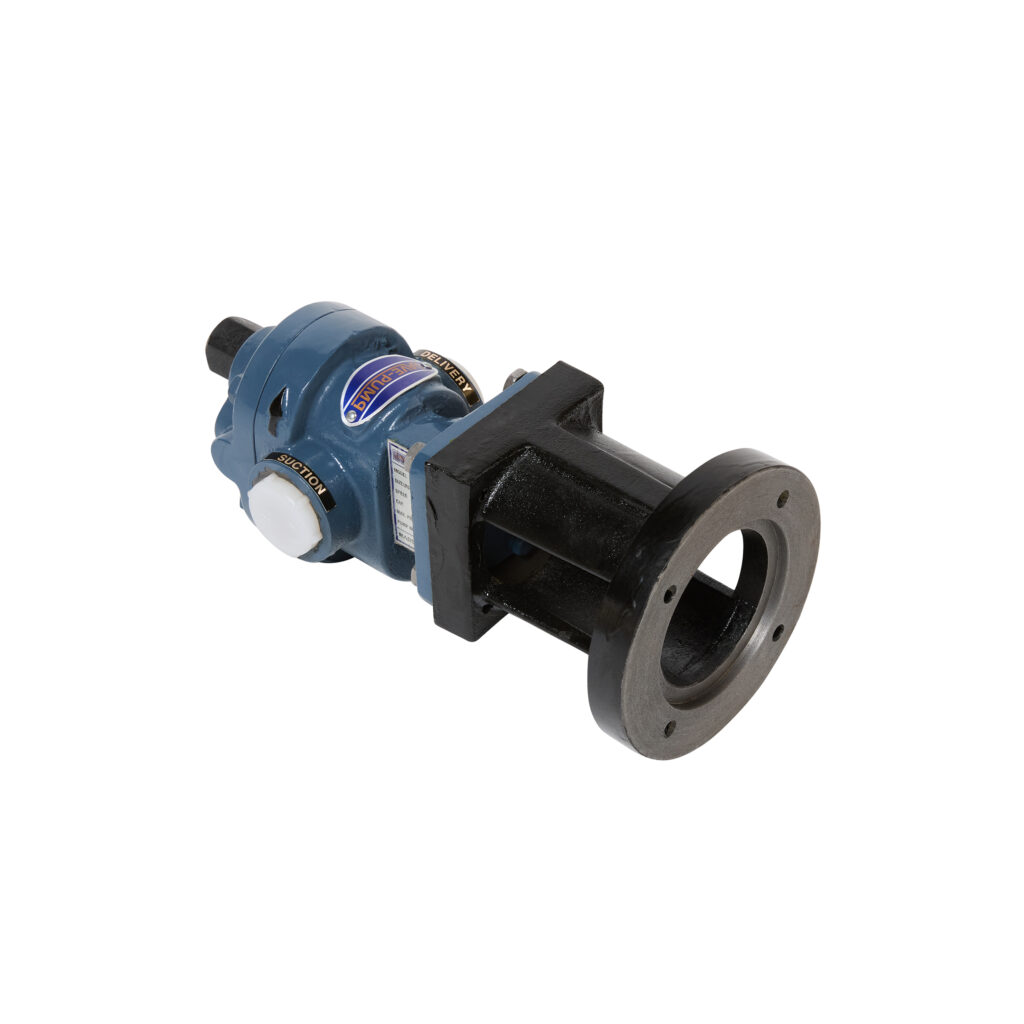

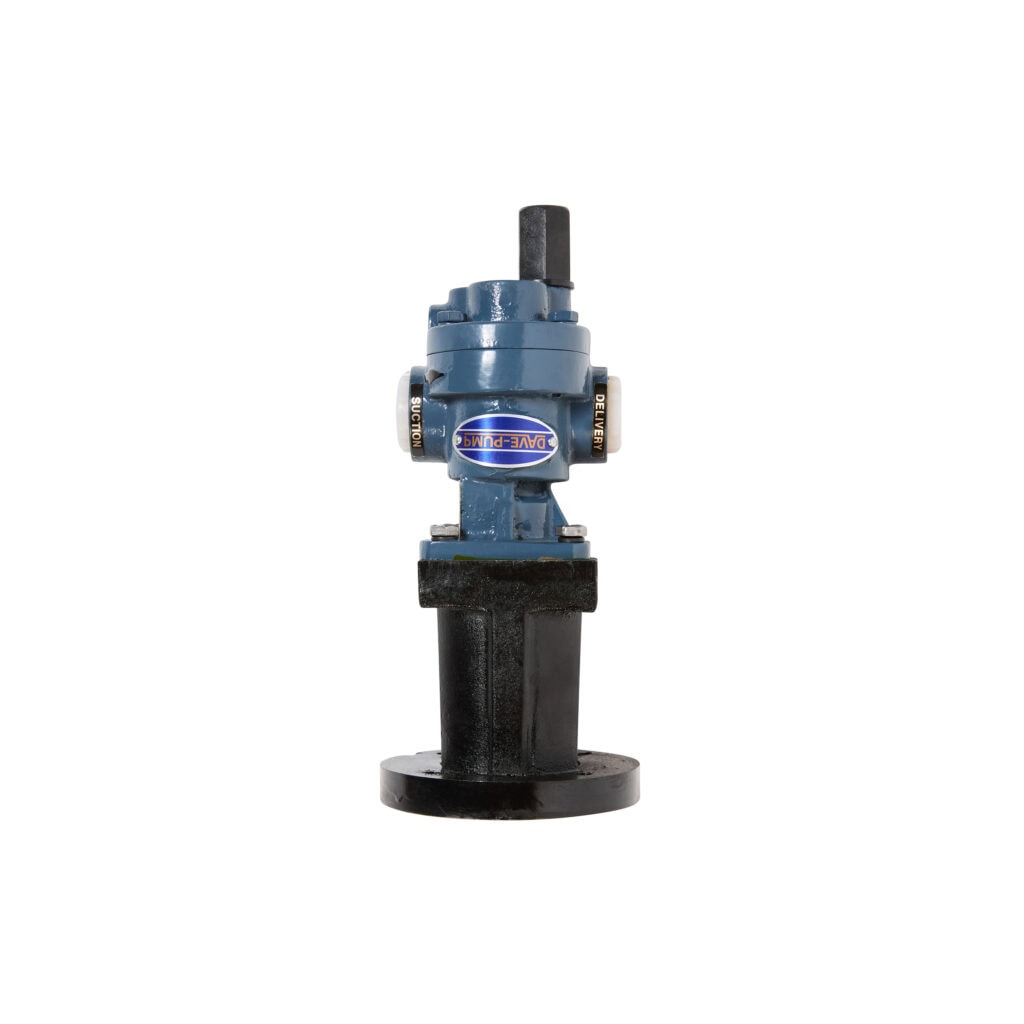

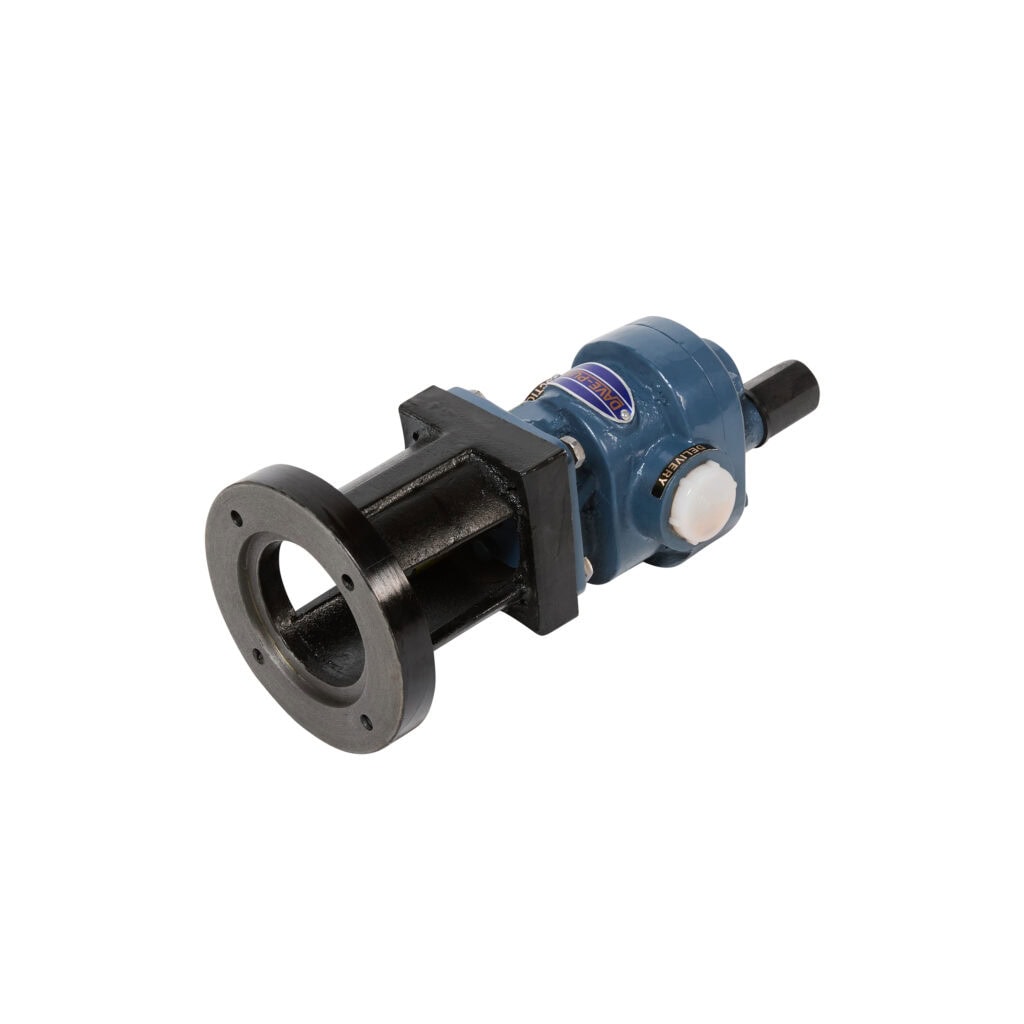

Pump Type: Gear Pump (JKX Series-Threaded with motor input flanged)
Brand: DAVE-Apex
Material: Cast Iron / Stainless Steel Gears
Mounting: Threaded connections (inlet/outlet)
Flow Range: 0.5 – 20 L/min
Pressure Range: 10 – 25 bar
Duty: Continuous (S1)

Specification
Description
Applications

POWER 0.25 – 2.2 kW
MOTOR TYPE Compatible with standard single-phase / three-phase motors
SPEED 1400 / 2800 RPM
VOLTAGE 220–240V (Single-phase), 380–415V (Three-phase)
FREQUENCY 50 Hz
PROTECTION IP44 / IP55
TEMPERATURE RANGE –10°C to +80°C
EFFICIENCY Up to 85%

Get DAVE‑Apex JK series threaded gear pump with Motor Input flanged from Pokhara Motors. Reliable, compact, medium‑pressure, easy motor coupling for industrial fluid transfer

Hydraulic systems, lubrication, chemical dosing, light industrial fluid transfer, and small machinery.
