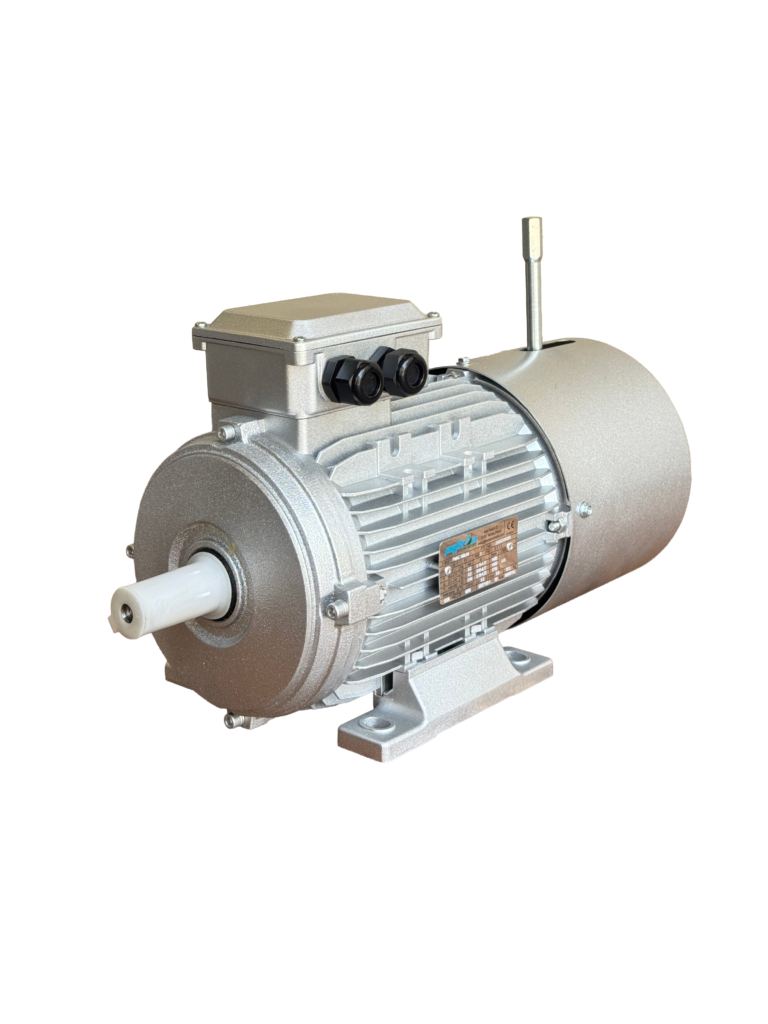

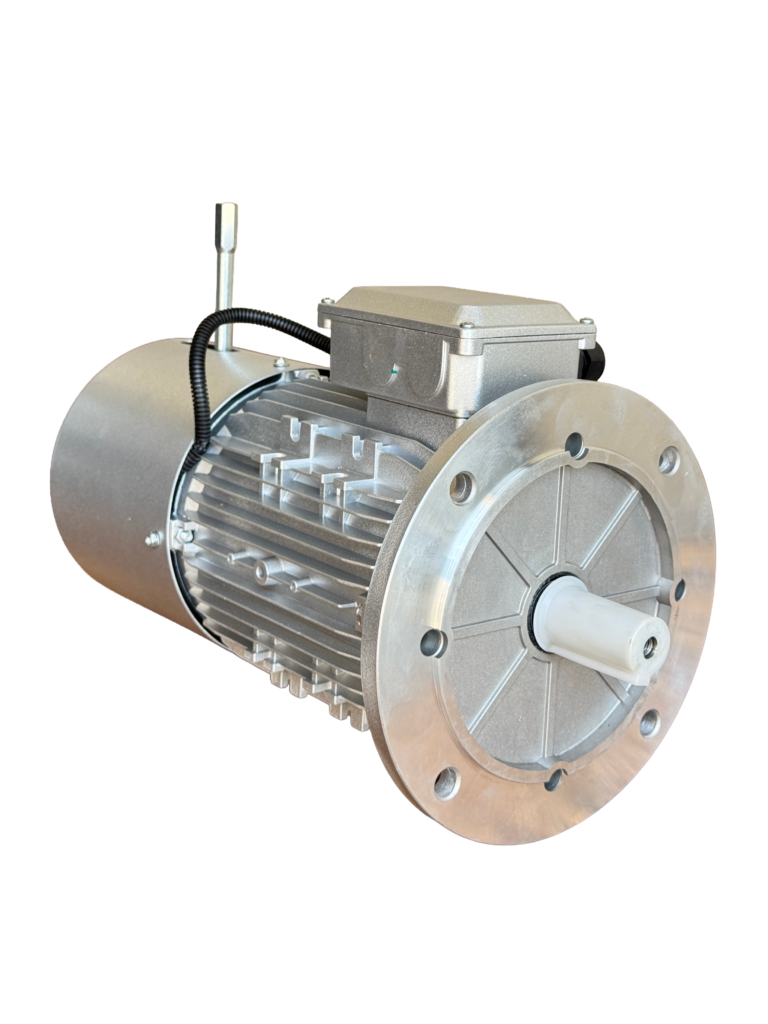

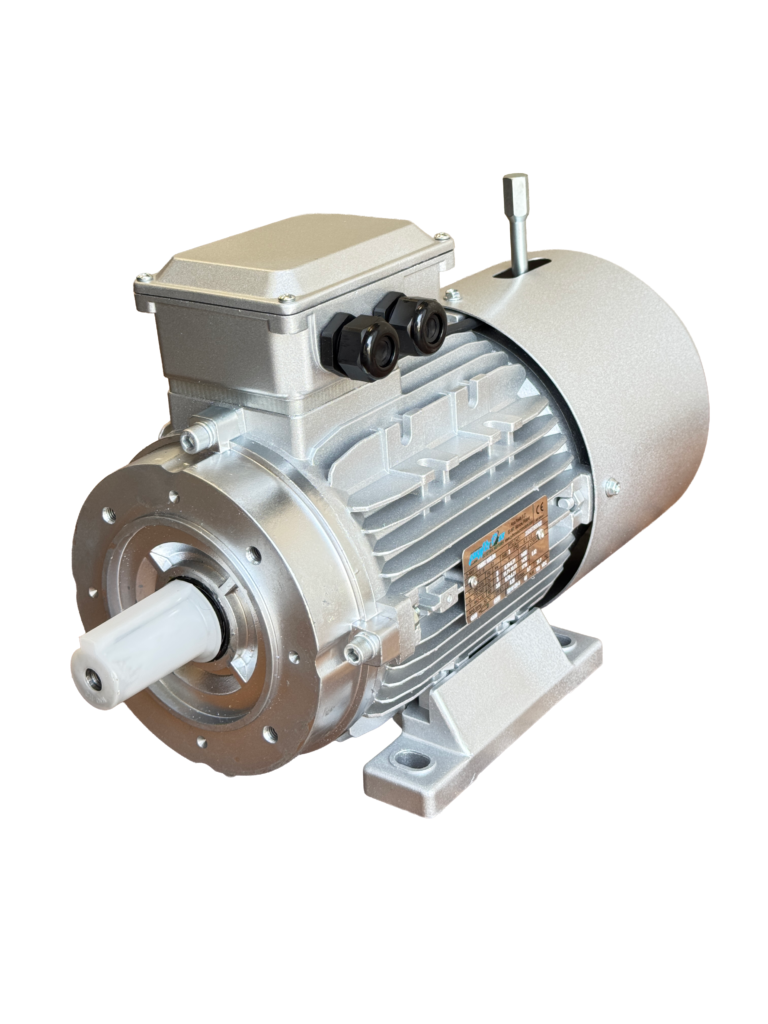

- Motor Type: Three Phase AC Brake Induction Motor
- Brand: Python
- Frame Material: Cast Iron
- Frame Size: IEC 63-200
- Mounting: IM B3,B5,B14,B34,B35
- Poles: 2/4/6/8
- Duty:S1(Continuous)
Python AC Brake
Double-tap to zoom
Key details :
- VOLTAGE 220V/380V/415V
- FREQUENCY 50 / 60 Hz
- OUTPUT 0.18 -22 kW
- SPEED 750/1000/1500/3000 RPM
- PROTECTION IP55(Motor) / IP44 (Brake)
- COOLING TEFC (IC411)
- INSULATION Class F
- EFFICIENCY CLASS IE2/IE3
Explore three python phase AC brake motor at Pokhara Motors. Precise stopping control, enhanced safety and ideal for industrial machinery applications.
Cranes, hoists, conveyors, machine tools, packaging machines, door operators, elevators, material handling equipment
