Introduction: Choosing the Right Industrial Gearbox

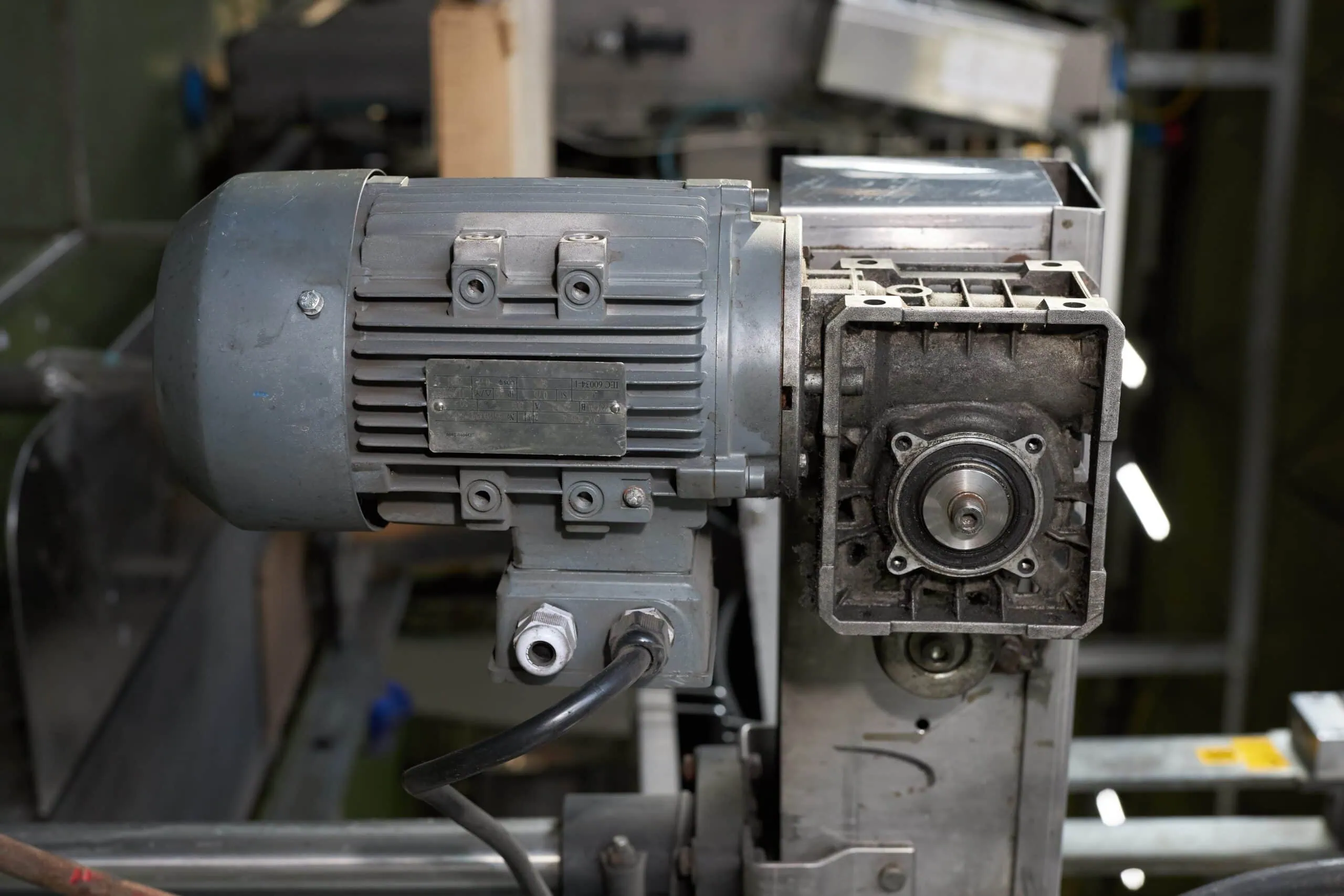

If you’re looking for an Industrial gearbox supplier in UAE, Saudi Arabia, Qatar or Oman, choosing the right gearbox is about more than finding a suitable brand. The gearbox must match the motor, driven equipment, required speed, torque and operating conditions.
An industrial gearbox transfers power between a motor and the machine it drives. It can reduce speed, increase output torque or change the direction of power transmission depending on the gearbox design. The wrong gearbox can lead to overheating, excessive noise, premature wear, poor machine performance and unexpected downtime. The right gearbox helps equipment operate smoothly and reliably over its working life.
Pokhara Motors supplies industrial gearboxes and gear reducers for applications across the UAE, Saudi Arabia, Qatar and Oman. Our range includes SITI, ATLAS and Bonfiglioli solutions for different industrial and mechanical applications.
What Does an Industrial Gearbox Do?
An industrial gearbox changes the speed and torque delivered from a motor to the driven machine.
Most electric motors operate at a relatively high speed while many machines require lower operating speeds and higher torque. A gearbox provides the required reduction ratio between the motor and the equipment.
Depending on the gearbox type, it can also:
- Reduce output speed
- Increase output torque
- Change the direction of power transmission
- Adapt a motor to different machine requirements
- Provide compact power transmission where installation space is limited
- Support continuous or heavy-duty industrial operation
The correct gearbox therefore depends on the complete application rather than the gearbox name alone.
Industrial Gearbox Applications in UAE
Industrial gearboxes are used across many industries because different machines require controlled speed and torque.
Conveyor Systems
Conveyors often require controlled output speed and sufficient torque to move materials continuously. Depending on the conveyor design, worm, helical or shaft-mounted gearbox solutions may be considered.
Manufacturing Machinery
Manufacturing equipment can require gearboxes for controlled mechanical movement and continuous operation. The correct gearbox depends on the machine’s speed, torque, load and duty cycle.
Concrete and Construction Equipment
Mixer trucks, batching equipment and construction machinery can experience high mechanical loads and demanding environments. Purpose-built gearbox solutions such as truck mixer gearboxes are designed for these applications.
Packaging Equipment
Packaging machinery often requires accurate and controlled mechanical movement. Compact gearboxes can be useful where space is limited and controlled speed reduction is required.
Material Handling
Material-handling systems may use gearboxes for conveyors, lifting equipment and other driven machinery. The selection should consider starting torque, load variation, operating hours and installation arrangement.
Pumps and Mechanical Drives
Gearboxes can also be used in mechanical systems where the motor speed needs to be adapted to the driven equipment. The gearbox must be selected according to the complete system requirements rather than motor power alone.
Main Types of Industrial Gearboxes
There isn’t one gearbox that is suitable for every industrial machine. The most suitable type depends on the required speed reduction, torque, mounting arrangement and application.
SITI MI / MU Worm Gearbox
The SITI MI / MU Worm Gearbox series is a worm gearbox solution designed for applications requiring compact speed reduction and right-angle power transmission. The MI and MU configurations provide different housing and mounting arrangements for industrial machinery.
Key Technical Features
- Available in: 12 sizes (MI and MU series)
- Housing material: Cast aluminium (up to size 110), cast iron (larger sizes)
- Reduction ratios: Up to 8,000:1 (single, double, and helical-worm configurations)
- Torque range: 140–26,500 lb. inch
- Input configurations: Helical input option, double worm combinations
- Output options: Single and double output shafts, multiple output flanges per size
- Accessories: Torque arm, shaft covers
- Interchangeable with most major European brands (VF, SWO, W, NMRV type series)
- Self-locking in many ratio configurations
- Quiet, low-maintenance operation
Common applications
- Conveyors
- Material handling
- Packaging machinery
- Small industrial machines
- Automation equipment
- Mixers
- General mechanical drives
Why Choose the SITI MI/MU Gearboxes in the GCC?
- Built for Hot Weather: The GCC’s extreme heat demands gearboxes that can withstand high temperatures. SITI MI/MU gearboxes use aluminum and cast iron, helping them maintain strength and durability even in outdoor or partially covered environments.
- Reliable Lubrication and Protection: These gearboxes are designed with proper lubrication and strong casings, reducing the risk of overheating, breakage and downtime in harsh operating conditions.
- Compatible with VF and NMRV Types: Many machines in the GCC use VF or NMRV gearboxes. When replacements are needed, SITI MI/MU gearboxes can fit directly without requiring machine redesigns, making them a practical solution.
- Trusted Alternatives to Other Brands: SITI MI/MU gearboxes provide a dependable option for businesses across the UAE, Saudi Arabia, Qatar and Oman. Companies seeking a reliable Atlas Gearbox Supplier in UAE can also explore Pokhara Motors’ full range of reducers.
Businesses looking for a SITI Gearbox supplier in UAE can explore the available SITI gearbox range from Pokhara Motors.
ATLAS AWG / AVF / AW Worm Gearbox
The ATLAS AWG / AVF / AW Worm Gearbox series provides another worm gearbox option for industrial applications. Worm gearboxes can be useful where high reduction ratios, compact construction and right-angle transmission are required. Depending on the configuration, the series provides different mounting and output arrangements.
Key Technical Features
- Brand: ATLAS
- Design: Single-stage worm gear with right-angle output
- Self-locking: Yes, in applicable ratio configurations
- Operation: Quiet, smooth, reliable continuous duty
- Output configurations: AWG, AVF, AW different shaft and flange arrangements
- Mounting: Foot mount, flange mount, shaft mount options
- Suitable for: Compact, space-constrained installations
- Efficiency: High reduction in one stage fewer components, lower maintenance
Common applications
- Conveyors
- Gates
- Material-handling equipment
- Machinery drives
- Industrial automation
- Lifting-related applications
- General power transmission
Why Choose AWG / AVF / AW in the GCC?
In applications where a load has to stay in place when the power is turned off like a crane or a hoist or a valve actuator or a gate you cannot use a gear box. The AWG and the AVF and the AW have a feature that locks itself which makes it safe. This feature is part of the design so you do not need a separate system to stop it from moving.
This is really important in places like Saudi Arabia where they have oil and gas installations or in Qatar where they have facilities for liquefied gas or in Oman where they have mines and ports. In these places they have strict rules, about safety and if something breaks it can be very serious.
For businesses comparing options, our Atlas Gearbox supplier in UAE range provides access to different industrial gearbox configurations.
Bonfiglioli 300 Series Truck Mixer Gearbox
designed for a very different operating environment from standard machinery. The Bonfiglioli Transmittal Mixer / Truck Mixer Gearbox-300 series is designed specifically for mixer truck applications.
Key Technical Features
- Brand: Bonfiglioli (Italy) world leader in mixer truck gearboxes
- Design: Purpose-built for transmittal/truck mixer drum drives
- Construction: Heavy-duty, built for continuous operation under shock loads
- Torque output: High torque for large drum rotation
- Duty cycle: Designed for continuous heavy-duty operation
- Environment rating: Suitable for dusty, high-temperature GCC job site conditions
- Applications: Concrete mixer trucks, industrial mixing plants, heavy agitators
- Reliability: Engineered to minimise downtime on active construction sites
Bonfiglioli Transmittal Mixer / Truck Mixer Gearbox-300 series can experience:
- Continuous drum rotation
- Variable concrete loads
- Shock loads
- Frequent starts and stops
- High ambient temperatures
- Dust and construction-site conditions
Why the GCC Construction Boom Needs the Bonfiglioli 300
The UAE, Saudi Arabia, Qatar and Oman are experiencing one of the largest construction booms in the region’s history. Each country is driving ambitious projects that demand reliable heavy‑duty equipment and the Bonfiglioli 300 gearbox is built to meet those demands.
- UAE: Major infrastructure upgrades are underway, from new roads to modernized city developments across all emirates.
- Saudi Arabia: Mega projects like NEOM, the Red Sea Project and Vision 2030 require vast amounts of concrete and advanced machinery.
- Qatar: Post‑FIFA investments are focused on upgrading existing facilities and developing new industrial zones.
- Oman: The Duqm Special Economic Zone, Sohar Port expansion and nationwide housing and road projects are reshaping the country’s industrial landscape.
In all these projects, the Bonfiglioli 300 gearbox delivers the performance needed for concrete mixers, heavy machinery and industrial applications. Its durability and efficiency help reduce downtime, improve reliability and support the scale of construction happening across the GCC. Pokhara Motors supplies the Bonfiglioli Gearbox supplier in UAE solution for concrete mixer and related applications.
SITI Bevel Gearbox
Bevel gearboxes are designed to transmit power where the input and output directions need to change. A right-angle gearbox can be useful when machine layout doesn’t allow the motor and driven shaft to remain on the same axis.
Key Technical Features
- Brand: SITI (Italy)
- Design: Right-angle bevel gear power transmission
- Output direction: 90° angular drive
- Operation: Low noise, smooth, reliable
- Construction: Compact, robust housing
- Mounting options: Multiple configurations available
- Suitable for: Continuous industrial duty
- Noise level: Low suitable for food, pharmaceutical, and packaging environments
- Applications: Conveyor drives, mixers, crushers, packaging machinery, pumps, material handling, industrial automation
Typical applications include:
- Conveyors
- Mixers
- Material handling
- Packaging machinery
- Pumps
- Industrial machinery
- Automation equipment
The SITI bevel gearbox range provides different configurations for industrial power transmission requirements.
ATLAS Bevel Gearbox
ATLAS bevel gearboxes are designed for applications requiring angular power transmission and robust mechanical construction. They can be considered for industrial machinery where the gearbox needs to transmit power through a change in direction while handling demanding operating conditions. The correct model should be selected according to motor power, output speed, torque, ratio, mounting and application requirements.
Key Technical Features
- Brand: ATLAS
- Design: Right-angle bevel gear power transmission heavy duty
- Power transmission: High-efficiency angular drive at 90°
- Precision: High-precision gear cutting for accurate, consistent power transfer
- Construction: Durable, heavy-duty housing built for harsh environments
- Efficiency: High minimal energy loss through optimised gear geometry
- Applications: Conveyor systems, heavy machinery, industrial drives requiring right-angle output
- Duty: Designed for continuous heavy-duty industrial operation
- Environment: Suitable for high-temperature, dusty GCC conditions
Factors to Consider When Selecting an Industrial Gearbox
1. Motor Power
Start with the motor driving the gearbox. The gearbox needs to be suitable for the motor power and the actual load. A gearbox that isn’t correctly matched can experience excessive mechanical stress or operate inefficiently. Motor power is normally specified in kW or HP.
However, motor power alone isn’t enough to select a gearbox. You also need to understand the output speed and torque required by the machine.
2. Gear Ratio
Gear ratio determines how much the gearbox reduces the motor speed. For example, an application requiring a large speed reduction will need a different gearbox ratio from a machine that needs only a small reduction. The required ratio should therefore be calculated from:
Motor speed ÷ required output speed
If the motor operates at a higher speed than the machine requires the gearbox needs to provide the appropriate reduction. Choosing the wrong ratio can result in machinery running too quickly or too slowly.
3. Output Torque
Torque is one of the most important gearbox selection factors. A gearbox must be capable of delivering the required output torque under the actual operating conditions.
This is especially important for:
- Mixers
- Conveyors
- Crushers
- Material handling equipment
- Heavy-duty machinery
- Construction equipment
The required torque can change depending on starting conditions, load variations and operating cycles. A gearbox that looks suitable based on motor power may still be unsuitable if the actual output torque requirement is higher than its rated capacity.
4. Duty Cycle
How often will the machine operate? A gearbox running continuously for several hours is exposed to different operating conditions than one that runs for a few minutes at a time.
Consider whether the equipment operates:
- Continuously
- Intermittently
- With frequent starts and stops
- Under constant load
- Under variable load
- With shock loading
A proper gearbox selection should account for the application’s service conditions rather than only the nominal motor rating.
5. Mounting Arrangement
The gearbox must physically fit the machine.
Common mounting considerations include:
- Foot mounting
- Flange mounting
- Shaft mounting
- Hollow shaft arrangements
- Solid shaft arrangements
The gearbox output shaft and mounting arrangement need to match the driven equipment. A technically suitable gearbox may still be unsuitable if its mounting configuration doesn’t match the machine.
6. Operating Environment
The environment where the gearbox operates also matters.
Consider:
- Dust
- Moisture
- Temperature
- Outdoor exposure
- Vibration
- Chemical exposure
- Continuous operation
A gearbox used in a clean indoor production area may have different requirements from one operating outdoors or in a demanding industrial environment. The housing, seals, lubrication and protection requirements should therefore be considered before purchasing.
How to Choose the Right Gear Box for Your GCC Application
Choosing the wrong gear box is one of the most expensive mistakes in industrial procurement. Here is Pokhara Motors’ practical guide:
1. Define Output Requirements
Start by calculating the gear ratio based on your machine’s needs.
- Identify required output speed (RPM)
- Determine required output torque (Nm or lb.in)
- Use formula: motor RPM ÷ output RPM = gear ratio
2. Determine Shaft Orientation
Choose gearbox type based on motor and machine alignment.
- Same axis → Inline gearbox
- 90° orientation → Bevel or Worm gearbox (R, AT, MI/MU, AWG/AVF/AW)
- Direct shaft mounting → Shaft mounted series
3. Assess Duty Cycle
Match gearbox rating to workload and operating conditions.
- Continuous heavy duty → 24/7 rated gearbox
- Intermittent light duty → standard gearbox
- High shock loads (mixers, crushers) → Bonfiglioli 300 or ATLAS AT
4. Consider Environment
Select housing and protection based on operating conditions.
- GCC outdoor heat/dust → cast iron housing, high IP rating
- Food/pharma clean rooms → aluminum housing, special seals
- Oil & gas hazardous areas → explosion-proof options
5. Check Safety Requirements
Ensure gearbox design meets safety needs when power is off.
- Load holding → Self-locking worm gearbox (MI/MU or AWG/AVF/AW)
- Prevent back-driving → Worm gearboxes only
Industrial gearboxes work by changing speed and torque between the motor and the driven equipment. If you want to understand the engineering principles behind how industrial gearboxes transmit power and control speed, this technical guide from Engineering ToolBox provides a clear overview.
Why Choose Pokhara Motors for Gear Boxes?
- Trusted Brands: We supply gear boxes from SITI, ATLAS and Bonfiglioli which are known for reliable engineering and consistent performance.
- Wide Product Range: Our range includes worm, bevel, helical, planetary, mixer and shaft-mounted gear boxes along with variators.
- Local Stock: Our Sharjah warehouse keeps gear boxes available for quick delivery across the UAE and other GCC markets.
- 14+ Years of Experience: Since 2011 we’ve supplied gear boxes to industries across the UAE, Saudi Arabia, Qatar and Oman.
- Technical Support: Share your motor power, output speed, torque and duty cycle and our team can help you select the right gear box.
- Industry Experience: Our gear boxes are used across manufacturing, packaging, petrochemical, mining and other industrial applications.
How Pokhara Motors Helps With Industrial Gearbox Selection
Pokhara Motors supplies industrial gearboxes and gear reducers from SITI, ATLAS and Bonfiglioli for industrial customers across the UAE, Saudi Arabia, Qatar and Oman. The company’s current product range includes worm, helical, bevel-helical, shaft-mounted, planetary, mechanical variator, prestage and truck mixer gear reducer solutions.
The company also provides technical guidance to help customers match the gearbox to the required application. This is particularly useful when the buyer knows the machine and motor requirements but isn’t sure which gearbox configuration is appropriate.
Instead of selecting a gearbox based only on its physical size, the selection can be based on the actual power, ratio, torque, mounting and duty requirements.
Frequently Asked Questions (FAQs)
Which gear box is best for heavy industrial applications?
Heavy-duty industries usually choose bevel-helical, planetary or heavy-duty worm gearboxes depending on torque, mounting arrangement and operating conditions.
How do I calculate the correct gear ratio?
The gear ratio is calculated by dividing motor input speed by the required output speed. This determines the reduction needed for your application.
Can one gear box be used for different industries?
Yes. Industrial gearboxes are used in conveyors, mixers, crushers, packaging equipment, water treatment plants, cement factories and many other applications when correctly sized.
What causes industrial gear boxes to fail?
Common reasons include incorrect sizing, inadequate lubrication, overloading, contamination and operating the gearbox beyond its rated capacity.
How often should a gear box be serviced?
Service intervals depend on operating hours and environment. Regular oil inspection, lubrication checks and seal inspection help maximize gearbox life.
Can you help me choose between the SITI and ATLAS Series bevel gear box?
Yes as the leading Siti Gearbox supplier in UAE, Saudi Arabia, Qatar & Oman and Atlas Gearbox supplier in UAE, Saudi Arabia, Qatar & Oman we can help you choose the best bevel gear box according to your required application.
Contact Pokhara Motors
For dependable Industrial gearbox supplier in UAE, Saudi Arabia, Qatar & Oman contact Pokhara Motors:
UAE (Head Office)
📞 +971 6 566 8176 | +971 6 566 8076
📧 sales@pokharamotors.com
Saudi Arabia
📞 +966 53 965 4113 (Dammam) | +966 53 038 0546 (Jeddah)
📧 info@pokharamotors.com
Qatar
📞 +974 6616 3852
📧 salesqa@pokharamotors.com
Oman
📞 +968 97225517
📧 oman@pokharamotors.com
🌐 Website: https://pokharamotors.com/
